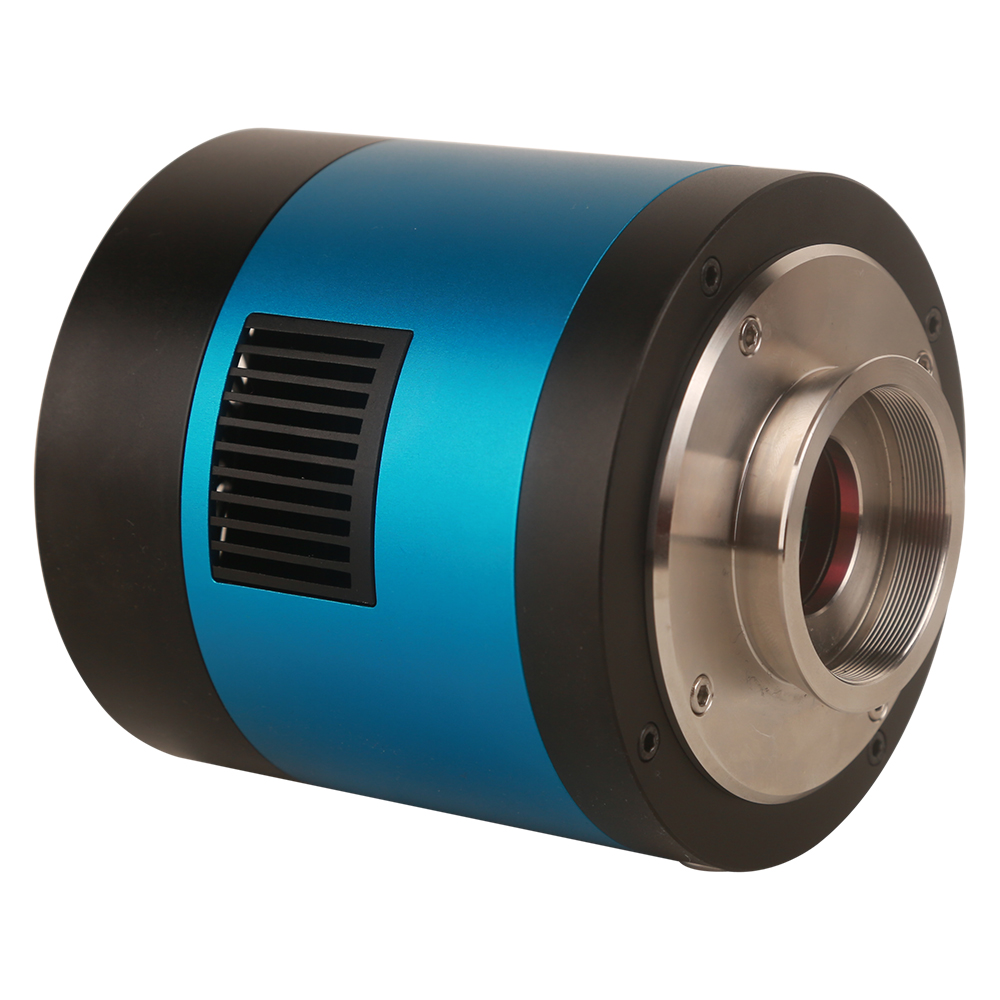

ATR3CCD Series 2"+M42x0.75 Mount USB3.0 TE-Cooling CCD Camera

ATR3CCD Series0

ATR3CCD Series 2"+M42x0.75 Mount USB3.0 TE-Cooling CCD Camera Features

  • Standard 2"+M42x0.75 mount camera with SONY ExView HAD CCD sensor from 1.4M ~ 6M;
  • Two-stage TE-cooling with controllable electric fan;
  • Working temperature can be regulated to specified temperature;
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
  • Up to 45 degrees temperature drop ensures high quality image with low noise;
  • Up to 1 hour long time exposure;
  • USB3.0 5Gbit/second interface ensuring high speed data transmission;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application ToupSky;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#, DirectShow, Twain Control API;

ATR3CCD Series 2"+M42x0.75 USB3.0 CCD Camera Dimension

The ATR3CCD Series USB3.0 CCD  Camerabody, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

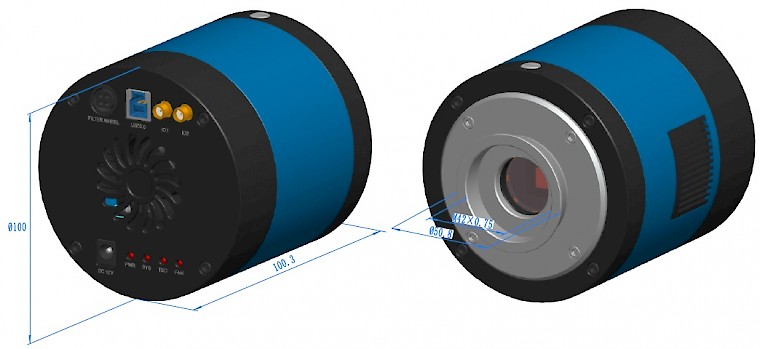

Dimension for ATR3CCD Series 2"+M42X0.75 TE-cooling USB3.0 CCD Camera

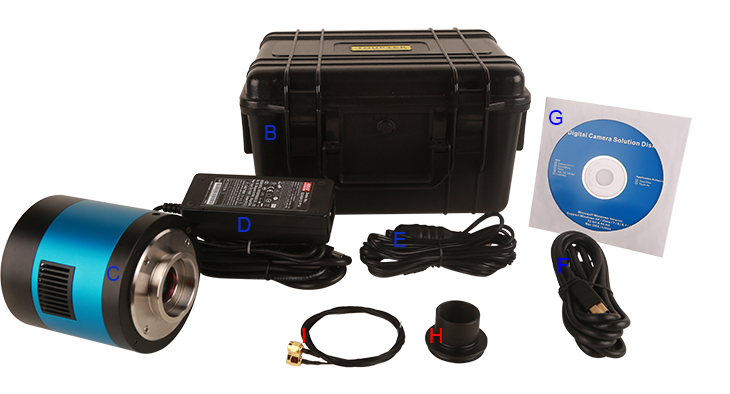

Packing Information of TR3CCD Series TE-cooling USB3.0 CCD Camera

ATR3CCD Series USB3.0 CCD  Camera Packing Information

Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box)

C

ATR3CCD series 2"+M42x0.75 mount TE-Cooling USB3.0 CCD camera

D

Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC 5V 4.5A

E

Car 12V power plug

F

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

M42X0.75(camera) to 1.25”(telescope) adapter(Part Number:208004)
K External trigger control line

Extension of ATR3CCD Series USB3.0 CCD Camera with Astronomy Adapter

Extension


2"+M42x0.75
Mount Camera

Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera



Telescope Camera
