XCAM Series HDMI+USB C-mount CMOS Camera

XCAM Series0
XCAM Series1
XCAM Series2
XCAM Series3
XCAM Series4

XCAM Series HDMI+USB C-mount CMOS Camera Features

  • All in 1( HDMI+USB+SD card) C-mount camera with high sensitivity CMOS sensor;
  • Simultaneous HDMI & USB output;
  • Built-in mouse control;
  • Built-in image capture & video record to SD card;
  • Built-in camera control panel for mouse control;
  • Built-in toolbar including zoom,mirror,comparison,freeze,cross,browser functions;
  • Built-in image & video browsing,display & play;
  • Ultra-Fine color engine with perfect color reproduction capability(USB);
  • With advanced video & image processing application ToupView, ;
  • Support standard UVC for Windows/Linux/Mac(USB);
  • CNC shell molding design;

XCAM Series HDMI+USB+SD Card All in 1 CMOS Camera

XCAM: ToupTek XCAM camera is a multiple interfaces (HDMI+USB2.0+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.

For HDMI output, a camera control panel and toolbar are overlayed on the HDMI screen, in this case, the USB mouse can be used to set the camera,browse and compare the captured image, play the video etal.

For USB2.0 output, unplug the mouse and plug in the USB2.0 cable, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other camera series.

XCAM camera can be used for microscope, industrial stereo microscope, on-line inspection et al.

HDMI Camera and Microscope

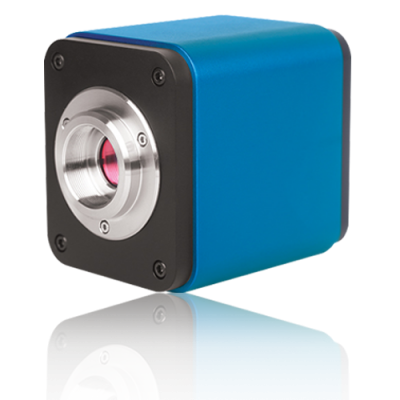

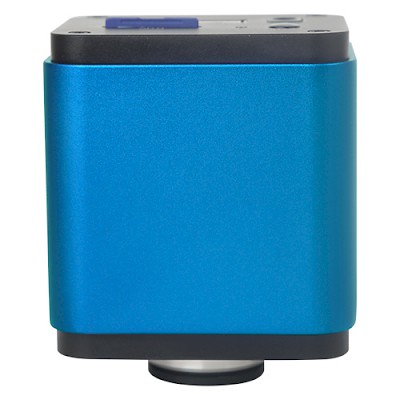

Front View of the HDMI+USB Camera

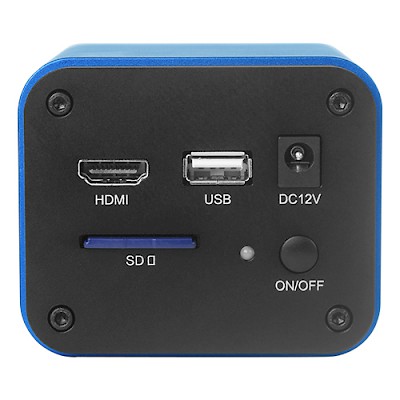

Back View of the HDMI+USB Camera

Normal View

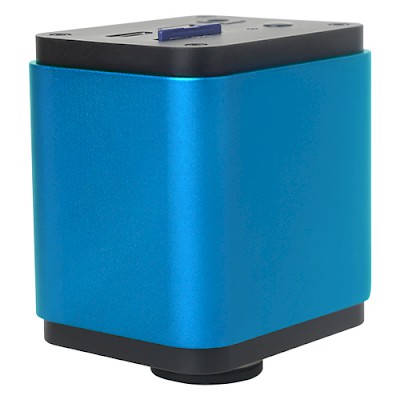

Side View

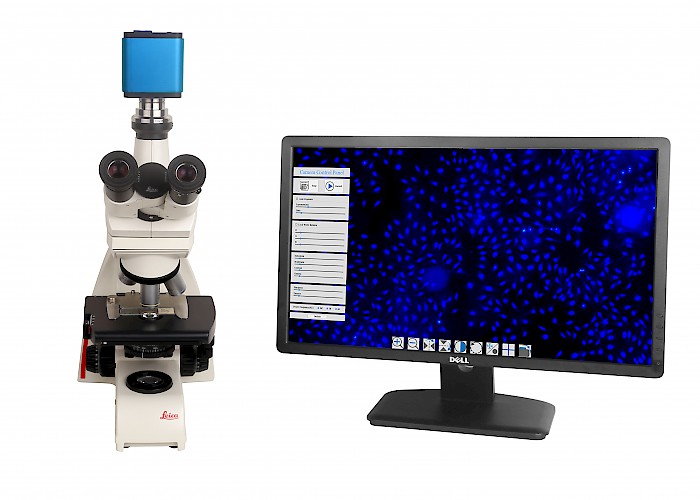

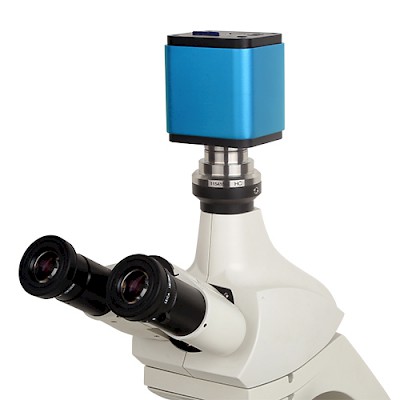

HDMI+USB Camera and Microscope

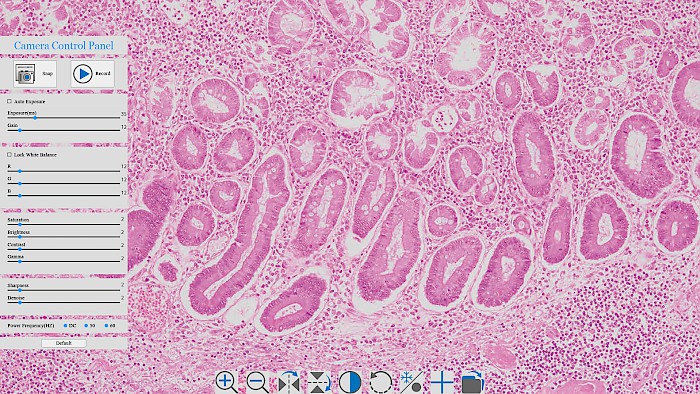

UI of the HDMI+USB Camera

Potiential Application

 Scientific research, education (teaching, demonstration and academic exchanges);
 Digital laboratory, medical research;
 Industrial visual (PCB examination, IC quality control);
 Medical treatment (pathological observation);
 Food (microbial colony observation and counting);
 Aerospace, military (high sophisticated weapons);

Packing Information for HDMI+USB+SD Card All in 1 CMOS Camera

Packing Information for HDMI+USB+SD Card All in 1 camera

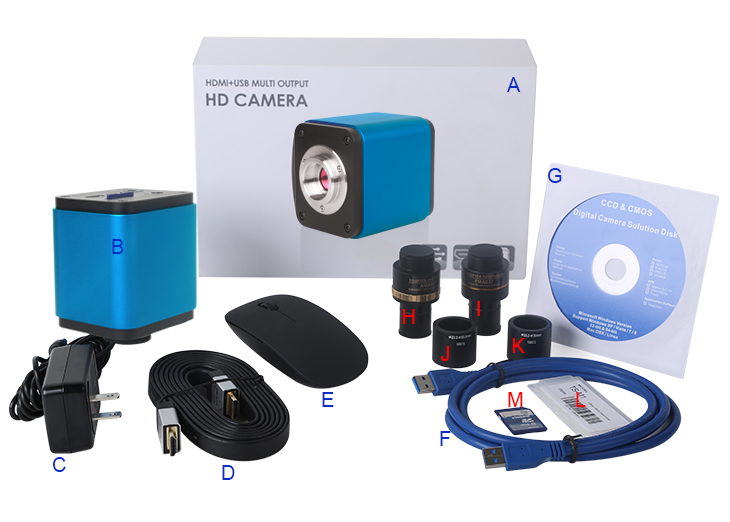

Standard Packing List

A

Gift box : L:22.5cm W:17.0cm H:9.0cm (1pcs, 1.65Kg/ box)

B

HDMI+USB+SD Card all in 1 camera

C

Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

European standard: Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

D HDMI Cable
E USB Mouse

F

High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

Adjustable
lens
adapter

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

I

Fixed
lens adaptor

C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

J

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

K

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

L

Calibration Kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
M SD Card(4G or 8G)

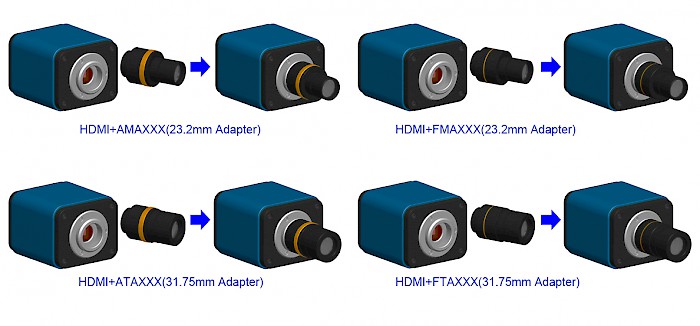

Extension of XCAM Series USB2.0 CMOS  with Microscope or Telescope Adaptor

Extension Picture

C-mount Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera



Telescope Camera:
