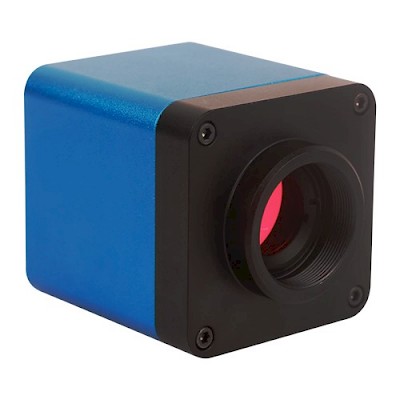

XCAM0720PHB/PHC C-mount HDMI CMOS Camera
XCAM0720PHB/PHC ’s Basic Characteristic
- Through standard HDMI interface to stream the video to displayer or HDTV.
- Aptina CMOS sensor;
- Easy connecting to other equipment on the production line with the C-mount optical interface.
- High-resolution and high frame rate, perfect color reproduction, highly integrated and compact, low failure rate and stable performance.
- 1280 × 720 (720P) resolutions to match the current high-definition displayer on the market.
- XCAM720PHB/PHC embedded XCamView based on the Qt platform. The camera characteristic can be controlled by XCamView through the mouse. The other basic processing and choosing can also be realized by the XCamView.
- XCAM0720PHB/PHC can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

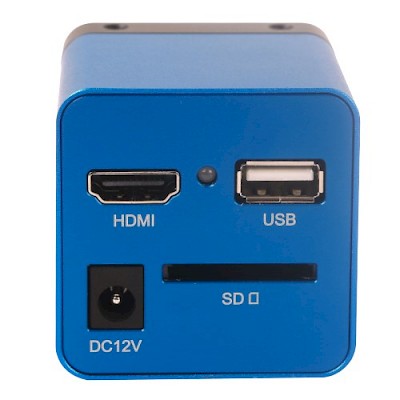

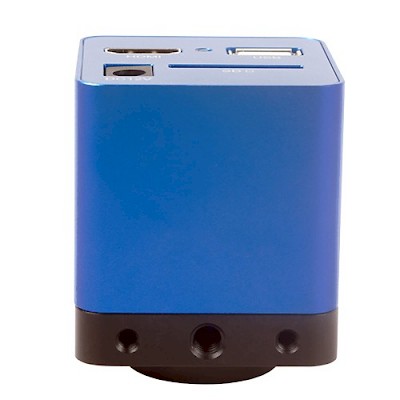

Hardware Interface and XCamView UI Description
The XCAM0720PHB/PHC light indicator flashes about 15s after the power on. The camera will load XCamView, and then the system begins to work. Auto exposure and white balance are the default state now.
- HDMI：The HDMI cable connected to the HDMI diaplayer;
- USB：USB mouse;
- DC 12V：Power in 12V/1A；
- LED: The blue LED indicator;
- SD：SD card;

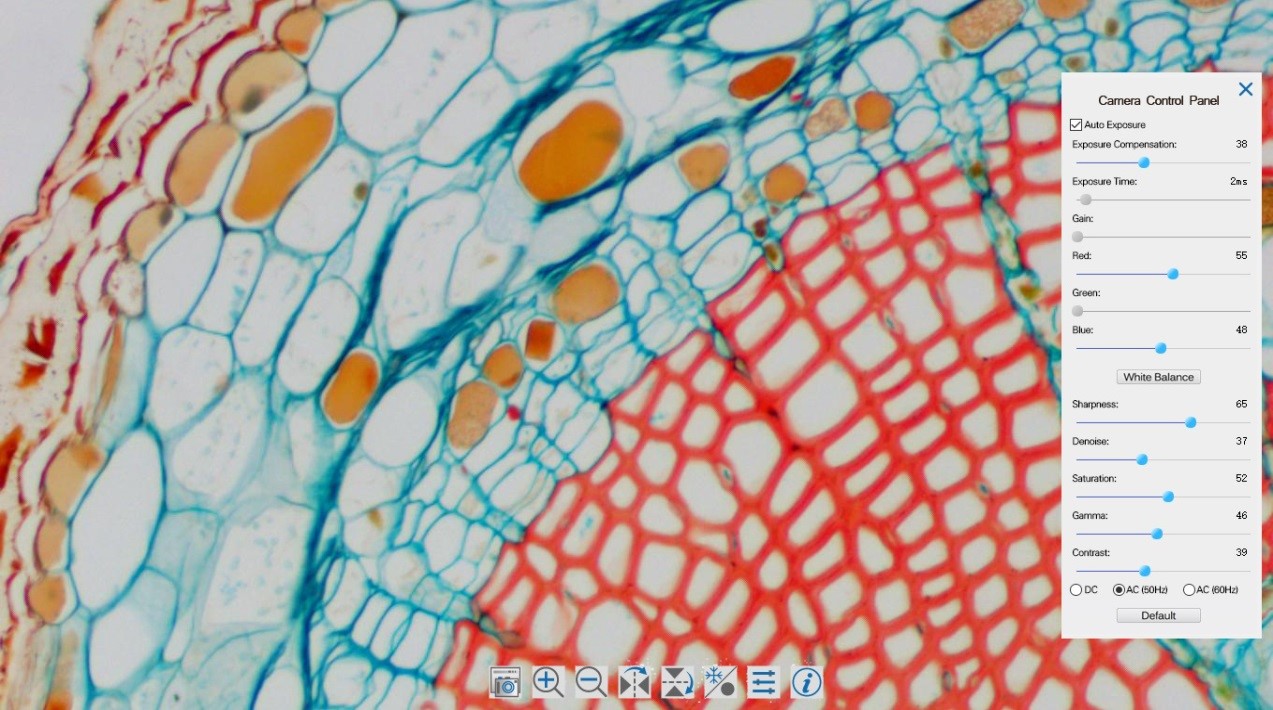

The GUI of the embeded camera control panel of XCamView in XCAM720PHB
XCamView toolbar for XCAM0720PHB/PHC
Move mouse to the bottom of the HDMI displayer, the bottom toolbar will be available. The function of each toolbar buttons are described as follows:
- 1：Image Capture
- 2：Digital Zoom In
- 3：Digital Zoom Out
- 4：Horizontal Flip
- 5：Vertical Flip
- 6：Video Freez /Cancel Video Freeze
- 7：Display/Hide the Camera Control Panel
- 8：Display the XCamView Version Information

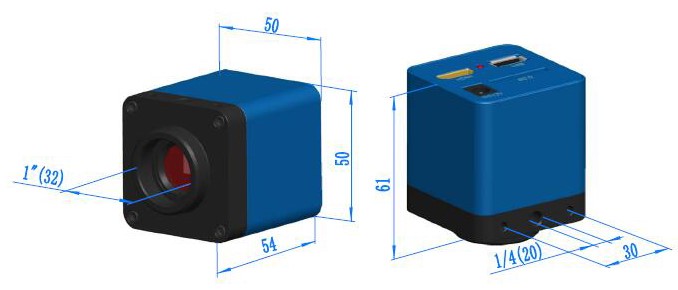

Dimension of XCAM0720PHB/PHC

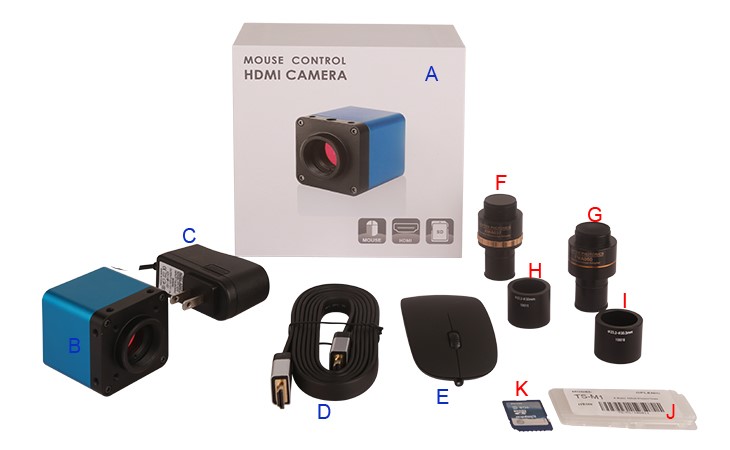

Packing Information for XCAM0720PHB/PHC
| Standard Packing List | ||||
|---|---|---|---|---|
| A | Gift box : L:17.5cm W:17.5cm H:8.5cm (1pcs, 0.85kg/ box) | |||
| B | XCAM0720PHB or XCAM0720PHC | |||
| C | Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Ouut: DC 12V 1A American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard |
|||
| European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338 EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard |
||||
| D | HDMI Cable | |||
| E | USB mouse/USB Wireless Mouse | |||
| Optional Accessory | ||||
| F | Adjustable lens adapter | C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
|
| C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope) |
108008/ATA037 108009/ATA050 108010/ATA075 |
|||
| G | Fixed lens adaptor | C-Mount to Dia.23.2mm Eyepiece Tube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
|
| C-Mount to Dia.31.75mm Eyepiece Tube (Please choose 1 of them for your telescope) |
108011/FTA037 108012/FTA050 108013/FTA075 |
|||
| Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera), engineer will help you to determine the right microscope or telescope camera adapter for your application; | ||||
| H | 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube | |||
| I | 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube | |||
| J | Calibration kit | 106011/TS-M1(X=0.01mm/100Div.); 106012/TS-M2(X,Y=0.01mm/100Div.); 106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.) |
||
| K | SD Card(4G or 8G) | |||

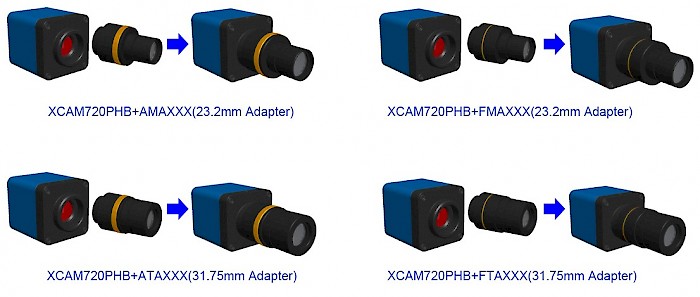

Extension of XCAM0720PHB/PHC with Microscope or Telescope Adaptor
| Extension | Picture | |
| C-mount Camera |  |
Machine vision; Medical imaging; Semiconductor equipment; Test instruments; Document scanners; 2D barcode readers; Web camera and security video; Microscope imaging; |
| Microscope Camera |  |
|
| Telescope Camera: | ||
