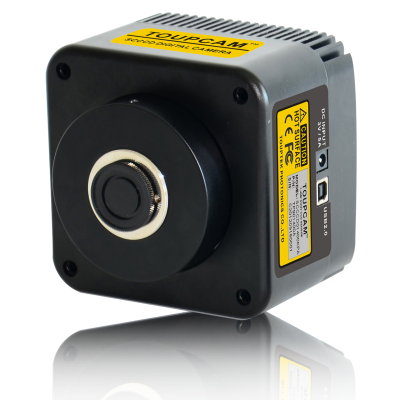

SCCCD Series C-mount USB2.0 CCD Camera

SCCCD Series0

SCCCD Series C-mount USB2.0 CCD Camera Features

  • C-Mount camera with SONY EXview or Super HAD CCD 1.4M to 5.2M sensor;
  • Well-designed high-performance TE-cooling with heat pipe heat sink structure;
  • Up to 20 degrees temperature drop ensures high quality image with lower noise;
  • Supporting up to 4'long time exposure;
  • USB2.0 interface ensuring high speed data transmission;
  • Ultra-Fine color engine with perfect color reproduction capability;
  • With advanced video & image processing application ToupView;
  • Providing Windows/Linux/OSX multiple platform SDK;
  • Native C/C++, C#, DirectShow, Twain Control API;

Advanced Software ToupView

- Offers stitching, EDF, color composite, image stacking, image segmentation, video recording and measurement functions
- Conducts measurements for lengths, angles, arcs, areas and etc.
- Gives your computer screens the same field of view as your microscope's eyepiece
- Saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
- Edit and process microscopy images in a manner similar to PhotoShop
- Live video and still image capture can be set in different resolutions simultaneously

Dimension of SCCCD Series C-mount USB2.0 CCD Camera

The SCCCD camera body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor and block the IR light. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

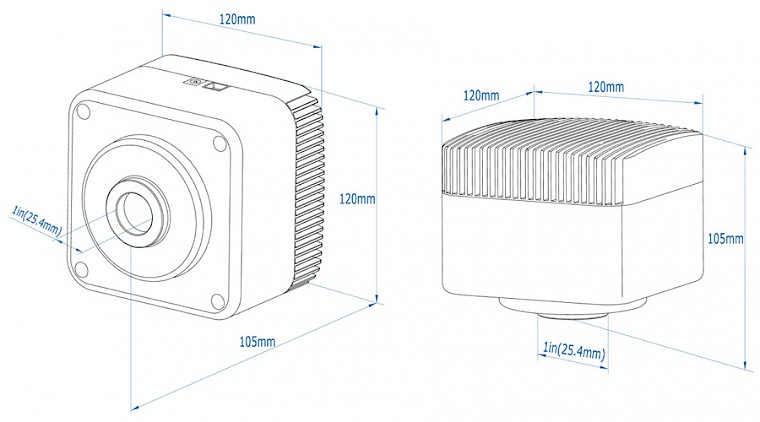

Drawing of SCCCD Camera

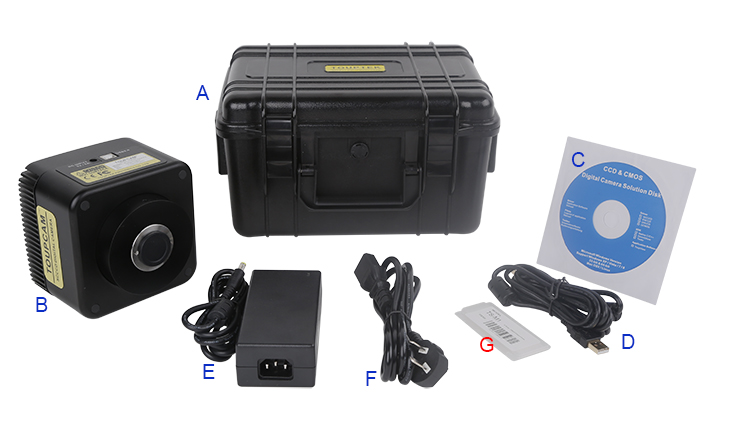

Packing Information for SCCCD Series USB2.0 CCD Camera

Standard Package
A 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 3.9Kg/ box);  carton size:L:28.2cm W:16.7cm H:25.5cm
B SCCCD series USB2.0 CCD camera(C-mount)
C CD (Driver & utilities software, Ø12cm)
D High-Speed USB2.0 A male to B male gold-plated connectors cable /2.0m
E Power adaptor: input: AC 100~240V 50Hz/60Hz, output: DC 5V 4.5A
F Power cord
Optional Accessories
G Calibration kit: TS-M1(X=0.01mm/100Div.);TS-M2(X,Y=0.01mm/100Div.); TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
