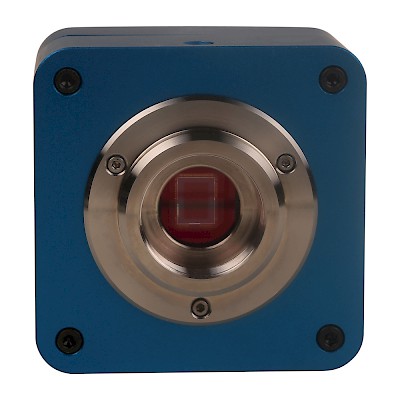

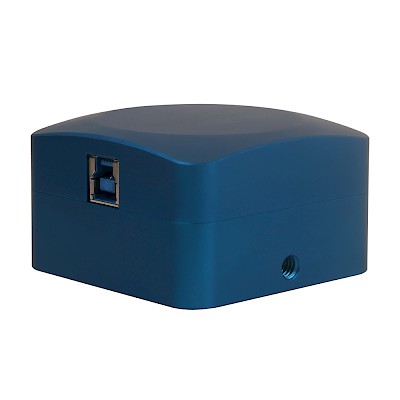

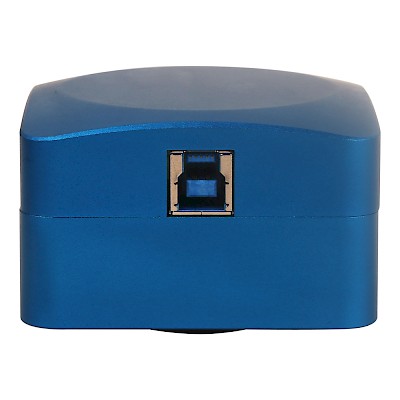

E3CMOS Series C-mount USB3.0 CMOS Camera

E3CMOS Series0
E3CMOS Series1
E3CMOS Series2
E3CMOS Series3

E3CMOS Series C-mount USB3.0 CMOS Camera Features

  • SONY Exmor Back-illuminated CMOS sensor with USB3.0 interface;
  • Real-time 8/12/14/16bit depth switch(depending on sensor);
  • Super high sensitivity up to 1120mV(IMX185);
  • Ultra low noise and low power dissipation;
  • With hardware resolution among 2.3M to 12M;
  • With advanced video & image processing application ToupView;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.Net, DirectShow, Twain, LabView

E3CMOS Series USB3.0 CMOS Camera Dimension

The E3CMOS body, made from CNC alumnium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

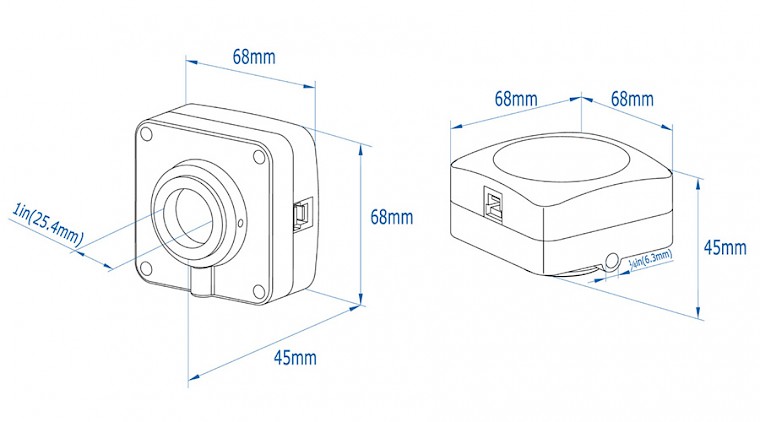

Drawing for E3CMOS Camera

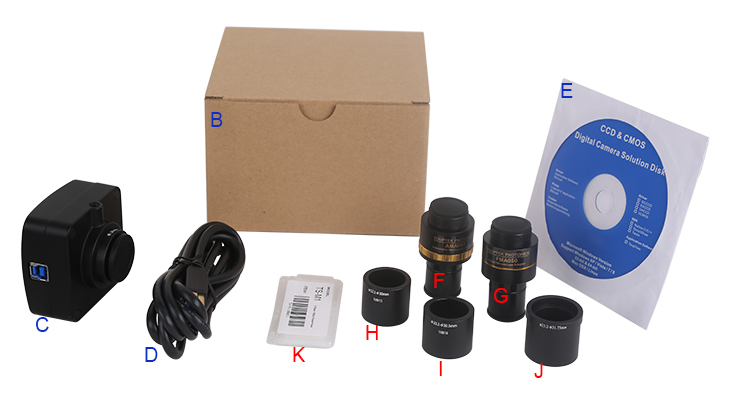

Packing Information for E3CMOS Series USB3.0 CMOS Camera

Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:15cm W:14.7cm H:10cm (0.8~1.0Kg/ box)

C

E3CMOS series USB3.0 C-mount CMOS camera

D

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable
lens
adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed
lens adaptor

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

K

Calibration Lit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

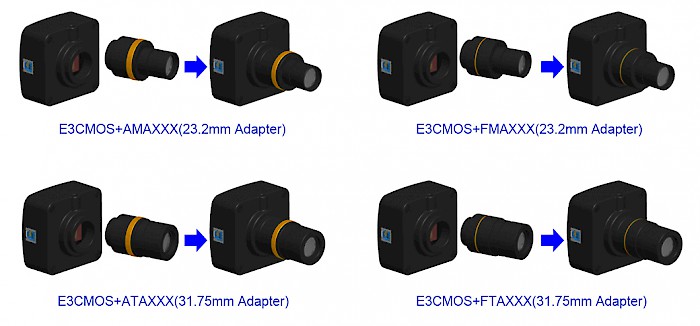

Extension of E3CMOS Series USB3.0 CMOS with Microscope or Telescope Adaptor

Extension Picture

C-mount Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera



Telescope Camera:
