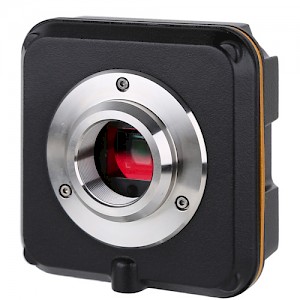

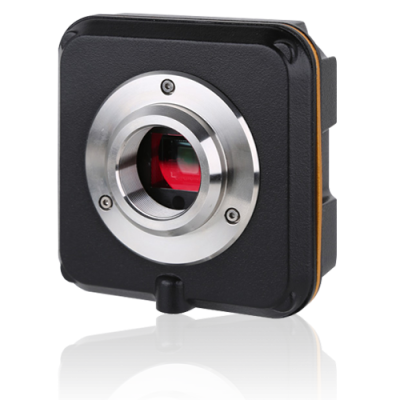

LCMOS Series C-mount USB2.0 CMOS Camera

LCMOS Series0

LCMOS Series C-mount USB2.0 CMOS Camera

  • Standard C-Mount camera with Aptina CMOS sensor;
  • With hardware resolution among 1.2M to 14M;
  • On-board memory for perfect synchronization,higher frame rate and stable performance;
  • High performance cooling structure, ensures low image noise;
  • USB2.0 interface ensuring high speed data transmission;
  • Ultra-Fine color engine with perfect color reproduction capability;
  • With advanced video & image processing application ToupView;
  • Providing Windows/Linux/OSX multiple platform SDK;
  • Native C/C++, C#, DirectShow, Twain Control API;

LCMOS Series USB2.0 CMOS Camera Dimension

The LCMOS Series USB2.0 CMOS Camera body, made from tough, aluminium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.

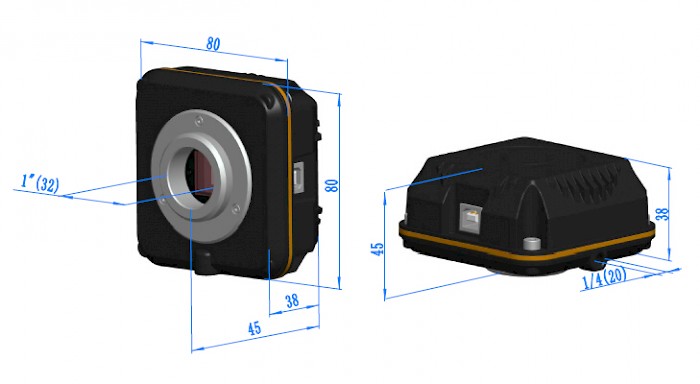

Dimension for LCMOS Series USB2.0 CMOS Camera

Packing Information of LCMOS Series USB3.0 CMOS Camera

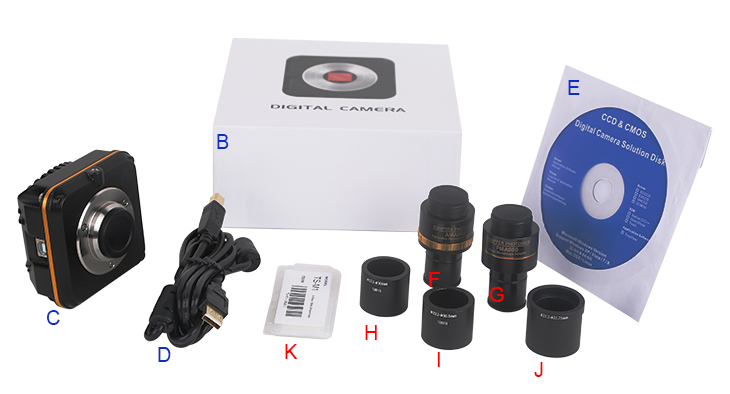

LCMOS Series USB2.0 CMOS Camera Packing Information

Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:16.4cm W:16.4cm H:7.5cm (0.8~1.0Kg/ box)

C

LCMOS series USB2.0 C-mount CMOS camera

D

High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m

E

CD (Driver & utilities software, Ø12cm)

Optional Accessory

F

Adjustable
lens
adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

G

Fixed
lens adaptor

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera) , ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

H

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

I

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

J

108017(Dia.23.2mm to 31.75mm Ring)/ Adaptor rings for 31.75mm eyepiece tube

K

Calibration Lit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

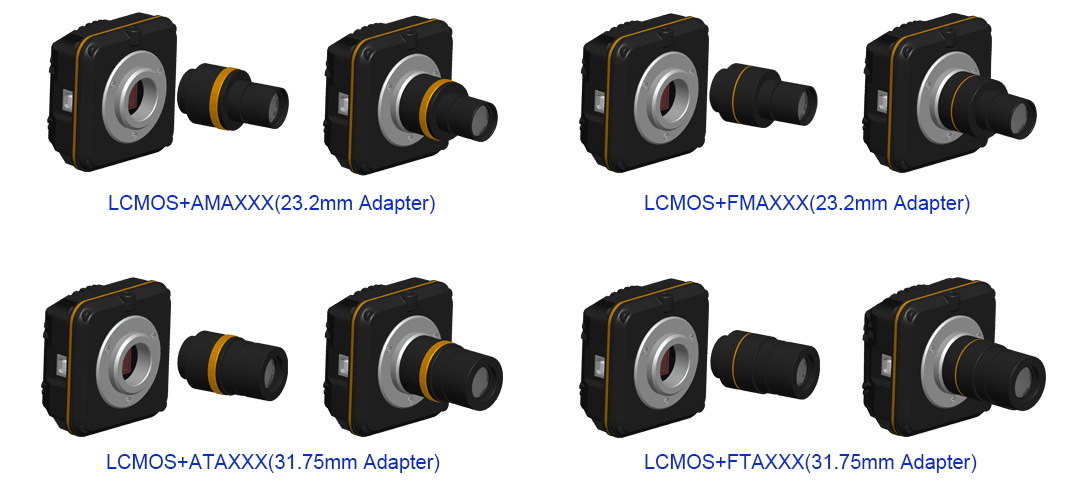

Extension of LCMOS Series USB3.0 CMOS Camera with Microscope or Telescope Adaptor

Application


C-mount Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera

Telescope Camera
