XCAM1080PHB/PHD C-mount HDMI+WIFI CMOS Camera

XCAM1080PHB/PHD0
XCAM1080PHB/PHD1
XCAM1080PHB/PHD2
XCAM1080PHB/PHD3

XCAM1080PHB/PHD is a multiple interfaces (HDMI+WIFI+SD card, so X here means multiple interfaces) CMOS camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WIFI are used as the data transfer interface to HDMI display or computer.

For HDMI ouut, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

For WIFI ouut, unplug the mouse and plug in the USB WIFI adapter, connect the computer WIFI to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as 's other USB series camera.

The XCAM1080PHB/PHD’s basic characteristic is as follows:

  • All in 1( HDMI+WIFI) C-mount camera with Sony high sensitivity CMOS sensor;
  • For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XCamView.;
  • 1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
  • For HDMI application, 5.04M resolution image(2592*1944 XCAM1080PHB) or 2.0M resolution image(1920*1080 XCAM1080PHD) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
  • With the USB WIFI adapter, the XCAM1080PHB/PHD can be used as WIFI camera, the ToupView/ToupLite advanced image processing software is used to view the video and capture image. support plug and play application;
  • Ultra-Fine color engine with perfect color reproduction capability(WIFI);
  • With advanced video & image processing application ToupView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB);
  • XCAM1080PHB/PHD can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

The possible application of XCAM1080PHB/PHD is as follows:

  • Scientific research, education (teaching, demonstration and academic exchanges);
  • Digital laboratory, medical research;
  • Industrial visual (PCB examination, IC quality control);
  • Medical treatment (pathological observation);
  • Food (microbial colony observation and counting);
  • Aerospace, military (high sophisticated weapons);



XCAM1080PHB/PHD and Microscope

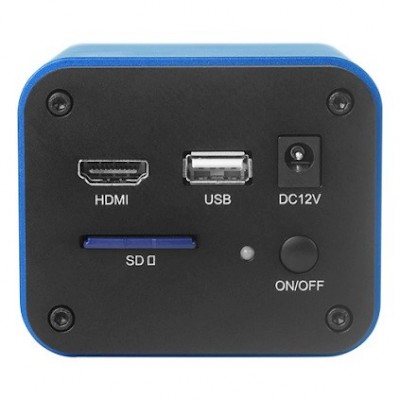

XCAM1080PHB/PHD and Its Back Panel

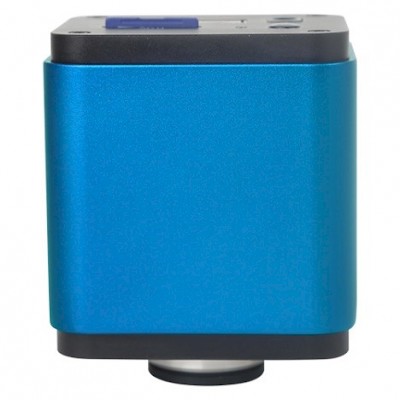

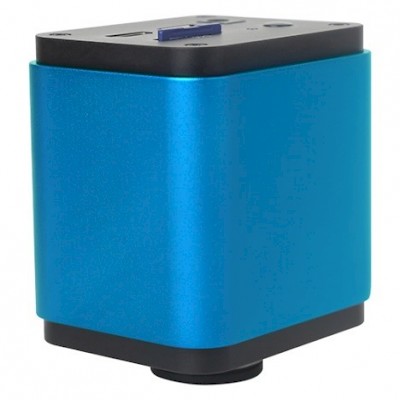

Different Views of XCAM1080PHB/PHD

XCAM1080PHB/PHD and Microscope

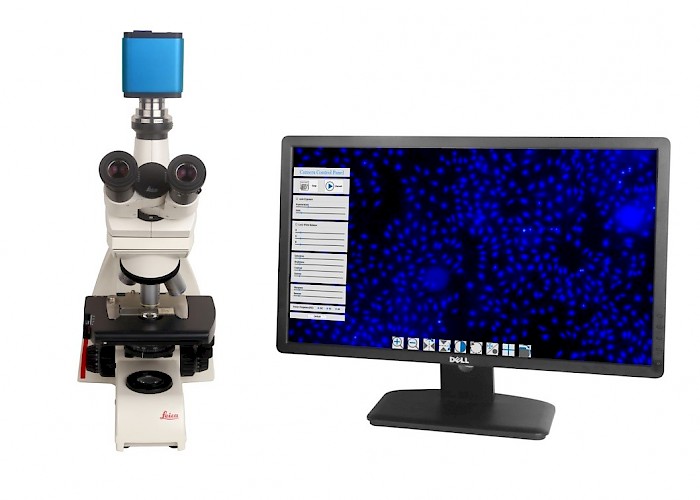

XCAM1080PHB/PHD+ Microscope+Display

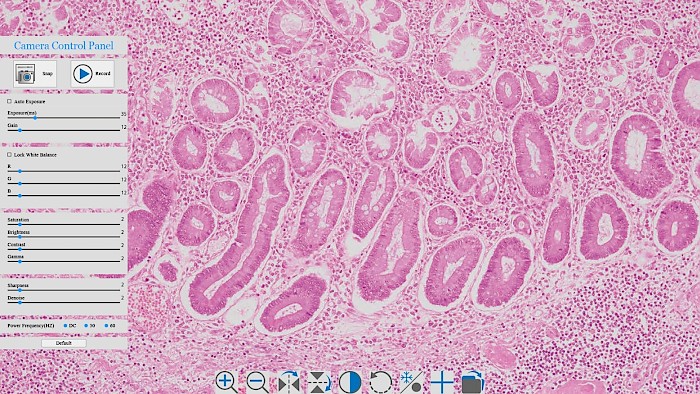

XCamView UI for Mouse Control

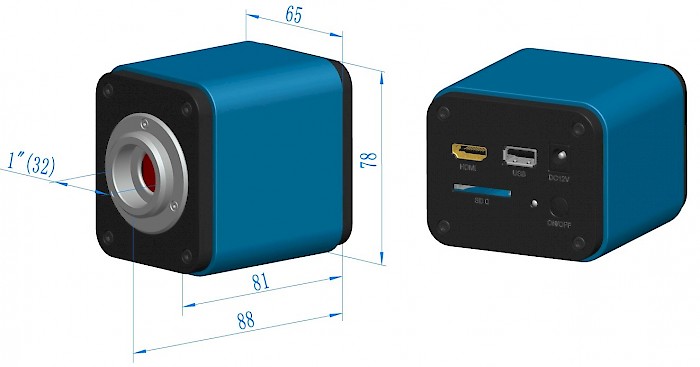

Dimension of XCAM1080PHB/PHD

Dimension of XCAM1080PHB/PHD

Packing Information for XCAM1080PHB/PHD

Packing information of XCAM1080PHB/PHD

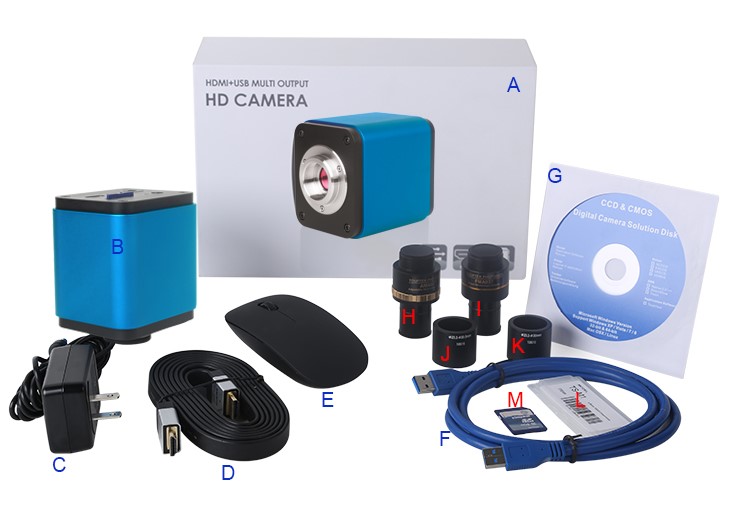

Standard Packing List
A Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box)
B XCAM1080PHB or XCAM1080PHD
C Power Adaptor: Input: AC 100~240V 50Hz/60Hz, Ouut: DC 12V 1A
American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS
EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338
EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard
D HDMI Cable
E USB Mouse
F High-speed USB2.0 A male to A male gold-plated connectors cable /2.0m
G CD (Driver & utilities software, Ø12cm)
Optional Accessory
H Adjustable lens adapter C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)
108001/AMA037
108002/AMA050
108003/AMA075
C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)
108008/ATA037
108009/ATA050
108010/ATA075
I Fixed lens adaptor C-Mount to Dia.23.2mm Eyepiece Tube
(Please choose 1 of them for your microscope)
108005/FMA037
108006/FMA050
108007/FMA075
C-Mount to Dia.31.75mm Eyepiece Tube
(Please choose 1 of them for your telescope)
108011/FTA037
108012/FTA050
108013/FTA075
Note: For H and I optional items, please specify your camera type(C-mount, microscope camera or telescope camera),  engineer will help you to determine the right microscope or telescope camera adapter for your application;
J 108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube
K 108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube
L Calibration kit 106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
M SD Card(4G or 8G)

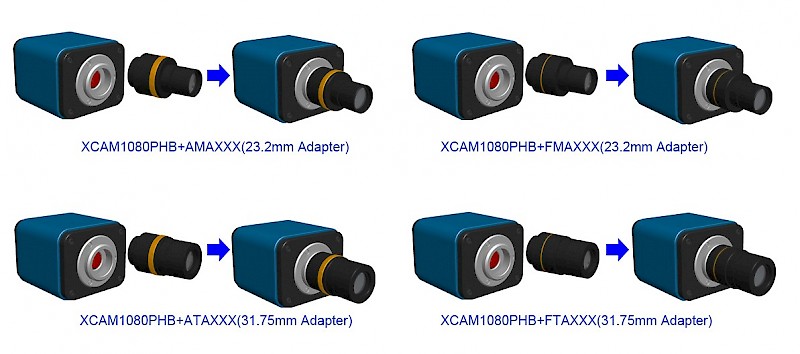

Extension of XCAM1080PHB/PHD with Microscope or Telescope Adaptor

Extension Picture
C-mount Camera Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;
Microscope Camera
Telescope Camera:
