GCMOS Series USB2.0 CMOS 1.25" Guiding Camera

GCMOS Series0
GCMOS Series1
GCMOS Series2

GCMOS Series USB2.0 CMOS 1.25" Guiding Camera Features

  • Great camera for auto-guiding and multiple types of astrophotography (Moon, Sun, Planets as well as Galaxies, Cluster and Nebulae)
  • Carefully selected sensor with high sensitivity and fast frame rate, as well as long time exposure
  • Protect window with double-side AR coating or IR-Cut filter
  • A built-in ST4 auto guider port for the easy connection of the auto guider
  • Dedicated astrophotography software to support video preview, video record, video processing, image capture and process, dark field correction and raw data output
  • Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography softwares
  • Aluminum CNC housing with standard 1.25 inch interface(outer) to fit to telescope eyepiece and standard C-mount(inner) for standard industrial lens
  • 1.25 inch nosepiece for precise focusing and 1.25 inch astronomical filter installation
  • Thermal design to transfer the sensor heat to the aluminum house quickly

Packing Information for GCMOS Series USB2.0 Camera

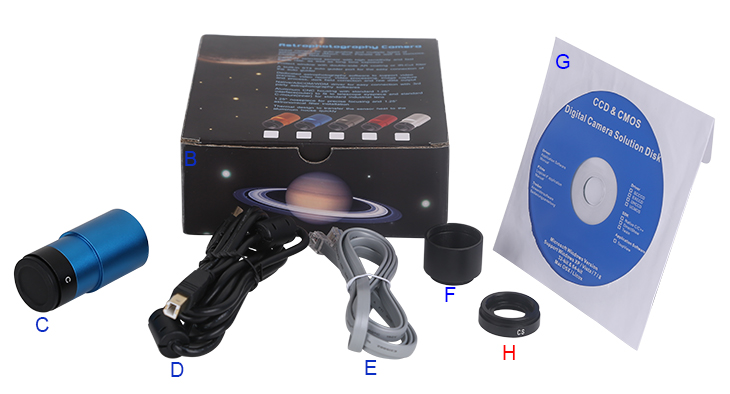

Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box)

C

GCMOS series USB2.0 C-Mount camera

D

High-speed USB2.0 A male to B male gold-plated connectors cable /2.0m

E 2.0m guide cable
F 1.25 inch nosepiece

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

CS-mount ring
