MTR3CCD Series C-mount USB3.0 TE-Cooling CCD Camera

MTR3CCD Series0
MTR3CCD Series1
MTR3CCD Series2
MTR3CCD Series3
MTR3CCD Series4

TR3CCD Series C-mount USB3.0 TE-Cooling CCD Camera Features

  • Standard C-Mount camera with SONY ExView HAD CCD II sensor from 1.4M ~ 6M;
  • Two-stage TE-cooling with controllable electric fan;
  • Working temperature can be regulated to specified temperature;
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
  • Up to 45 degrees temperature drop ensures high quality image with low noise;
  • Up to 1 hour long time exposure;
  • USB3.0 5Gbit/second interface ensuring high speed data transmission;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application ToupView;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#, DirectShow, Twain Control API;

TR3CCD is an Temterature Regulated USB3.0 CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device. Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. ToupTek uses EXCCD for simplicity. USB2.0 is used as the data transfer interface.

TR3CCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#, DirectShow, Twain Control API;

The TR3CCD can be widely used in low light environment and microscope fluorescence image capture and anaysis.

TR3CCD Series C-Mount USB3.0 CCD Camera Dimension

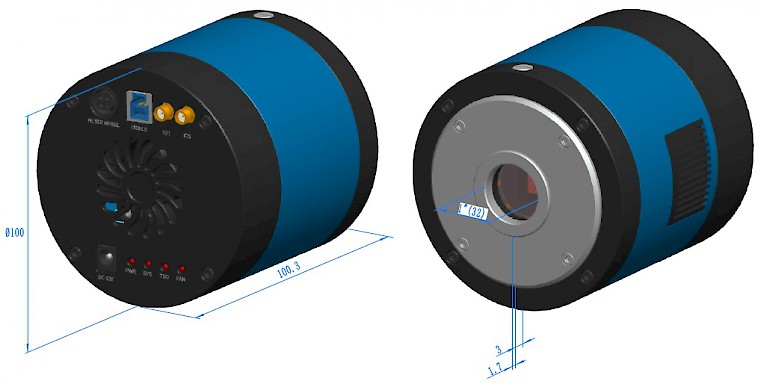

Installation drawings(Click to enlarge). The TR3CCD Series USB3.0 CCD  Camerabody, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.



Dimension for TR3CCD Series C-Mount TE-cooling USB3.0 CCD Camera

TR3CCD Series USB3.0 CCD  Camera Packing Information

Standard Camera Packing List

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo

B

Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box)

C

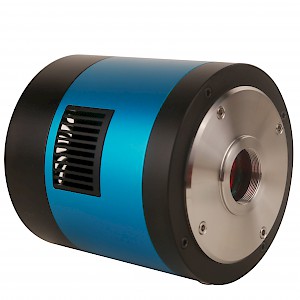

TR3CCD series TE-Cooling C-mount USB3.0 CCD camera

D

Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC 5V 4.5A

E

High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m

F

CD (Driver & utilities software, Ø12cm)

Optional Accessory

G

Adjustable
lens
adapter

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108001/AMA037
108002/AMA050
108003/AMA075

C-Mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108008/ATA037
108009/ATA050
108010/ATA075

H

Fixed
lens adaptor

C-mount to Dia.23.2mm eyepiece tube
(Please choose 1 of them for your microscope)

108005/FMA037
108006/FMA050
108007/FMA075

C-mount to Dia.31.75mm eyepiece tube
(Please choose 1 of them for your telescope)

108011/FTA037
108012/FTA050
108013/FTA075

Note: For F and G optional items, please specify your camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

I

108015(Dia.23.2mm to 30.0mm Ring)/Adaptor rings for 30mm eyepiece tube

J

108016(Dia.23.2mm to 30.5mm Ring)/ Adaptor rings for 30.5mm eyepiece tube

K External trigger control line

L

Calibration Lit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

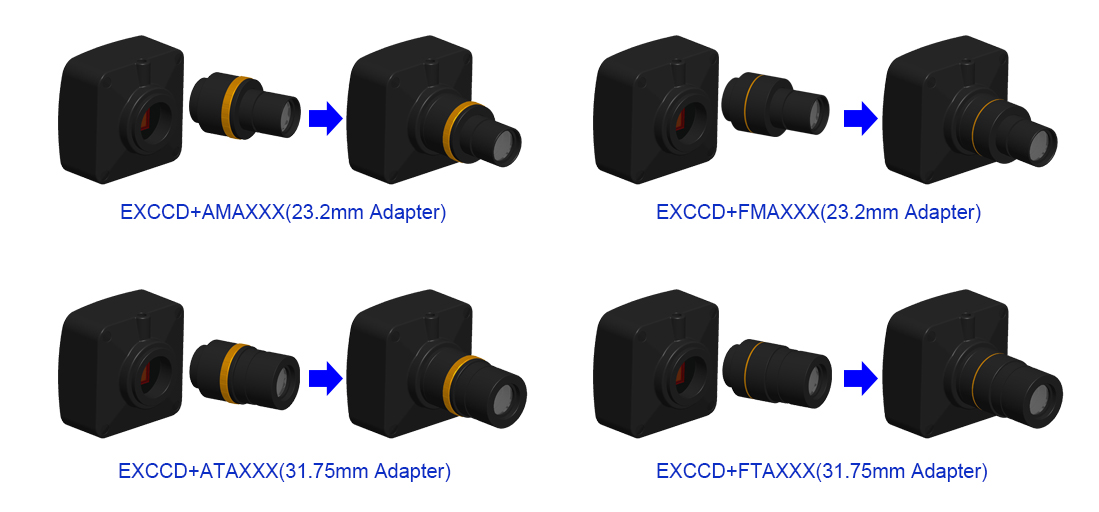

Extension of TR3CCD Series USB3.0 CCD Camera with Microscope Adapter

Extension


C-mount Camera

Machine vision; Medical imaging;
Semiconductor equipment; Test instruments;
Document scanners; 2D barcode readers;
Web camera and security video;
Microscope imaging;

Microscope Camera



Telescope Camera
